Rubber Bumper
Shock-absorbing protection for building walls and dock faces. Standard, stack and D-type configurations for light to heavy-duty impact.
Truck Stop
Hydraulic hook locks onto truck chassis rear beam, preventing early departure and trailer creep. Essential for loading dock safety compliance.
Control Box
Central control unit for dock leveler operation. One-button control with digital display option and built-in safety warning indicators.
Optional Accessories
Complete your dock with signal lights, LED lighting, wheel guide rails and warning columns — the finishing touches for a fully equipped loading station.
Rubber Bumper
Rubber dock bumpers effectively prevent damage to building walls and dock faces when trucks reverse into position. Acting as a shock absorber, they enable vehicles to safely park at the correct distance from the dock — protecting both the infrastructure and the vehicle.
Key Highlights
| Type | Dimensions | Application |
|---|---|---|
| Standard Rubber Bumper | 250×250×100mm | Light-to-medium duty docks |
| Standard Rubber Bumper | 400×200×100mm | Medium duty docks |

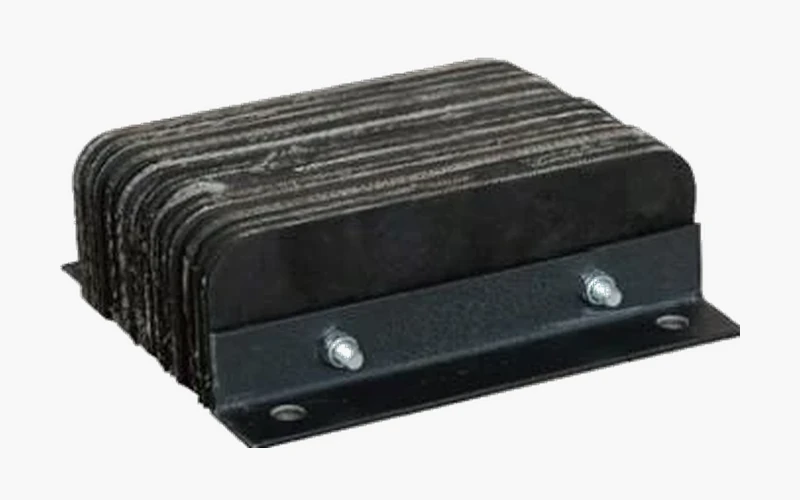

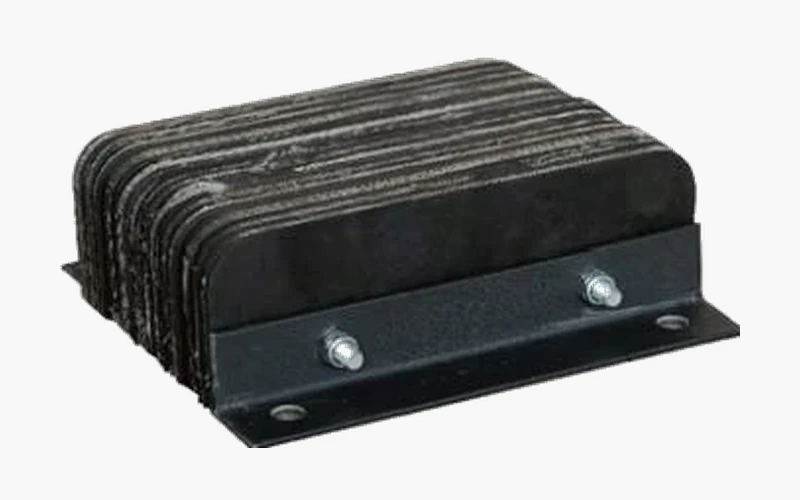

| Stack Rubber Bumper | 300×200×100mm | Multi-layer impact protection |
| D-Type Rubber Bumper | 2000×200×200mm | Heavy-duty, extended coverage |
* Custom sizes available upon request
Truck Stop (Vehicle Restraint)

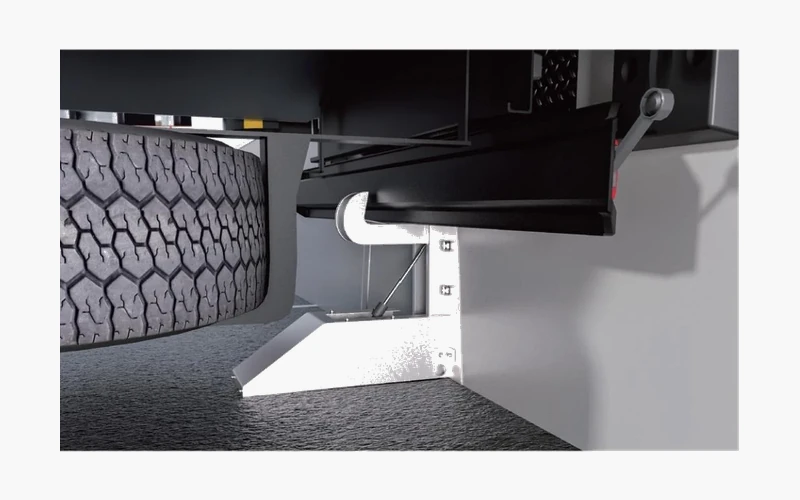

The Dorzone hydraulic truck stop uses a heavy-duty hook mechanism to lock onto the truck's rear beam (ICR), preventing early departure and trailer creep during loading/unloading operations. With a 16-ton load capacity and integrated control system, it is the critical safety barrier for any modern loading dock.
Key Features
| Parameter | Specification |
|---|---|
| Model | DZ-VS-750 (750 × 750mm base) |
| Itinerary (Travel) | 280 ~ 700 mm |
| Load Capacity | 16,000 kgs |
| Surface Finish | Galvanized (corrosion resistant) |
| Main Material | Q345 Structural Steel |
| Track Material | 16mm Steel |
| Latch Hook | 65mm Steel |
| Component | Specification |
|---|---|
| Hydraulic System | 380V / 1.1kW / 50Hz |
| Hydraulic Cylinder | Japanese NOK Seal System |
| Control System | Integrated (Dock & VS 2-in-1 Controller) |
| Free Floating Device | 60Si2Mn Special Springback |
| Interior Signal Lamp | LED 3W Red + Green Combi-Light |
| Exterior Signal Lamp | LED 5W, Ø100mm Waterproof Traffic Light, IP56 |
| Signal Translation System | Waterproof & Oil-Control Electronic Switch |

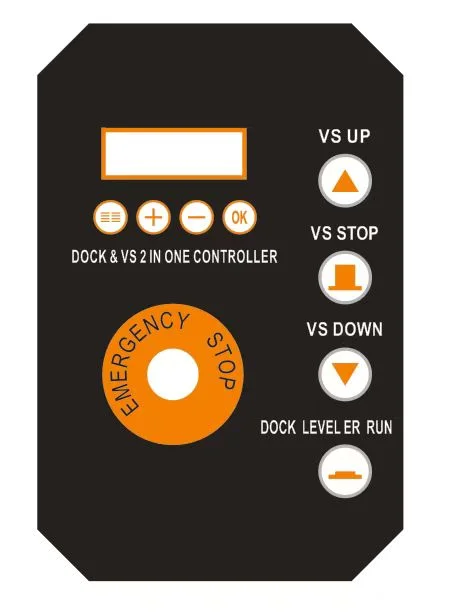

The integrated Dock & Vehicle Restraint 2-in-1 Controller provides unified operation for both the dock leveler and truck stop system, featuring dedicated buttons for vehicle restraint up/stop/down, dock leveler operation, and an emergency stop function. The dual signal light system (interior LED indicator + exterior IP56 traffic light) ensures clear visual communication between the driver and dock operator throughout the entire loading cycle.
Control Box

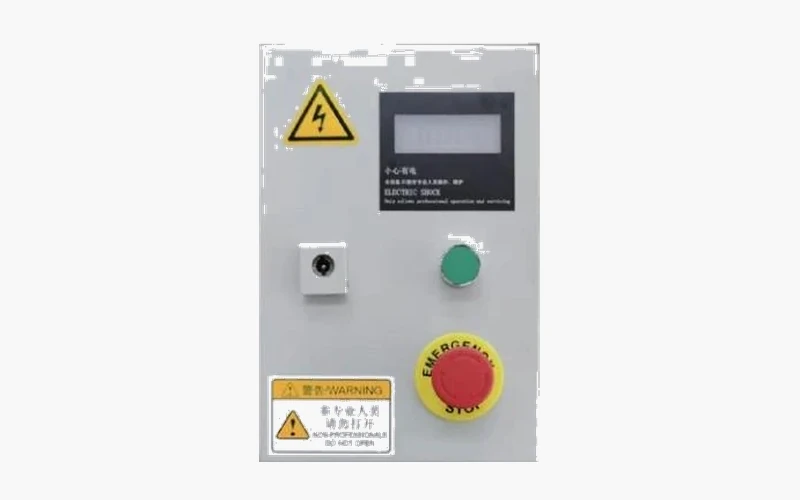

Central control unit for dock leveler operation. Available in configurations for both standard hydraulic dock levelers and telescopic dock levelers. Features one-button operation with clear warning indicators. The digital display variant provides real-time status feedback for enhanced operational awareness.
Key Highlights
Two primary configurations are available: the Standard Dock Leveler Control Box for basic hydraulic operation, and the Telescopic Dock Leveler Control Box with extended lip control. The Digital Display Control Box adds real-time position and status monitoring.
Optional Accessories
Complete your loading dock with essential accessories for safety, visibility and operational efficiency. Each component is designed to integrate seamlessly with Dorzone dock levelers, lifts and seals.
