Frame Platform
For large indoor/outdoor height gaps when no platform pit can be reserved indoors. Extends the loading area outward with a raised structure, bridging warehouse floor to truck bed.
Loading Room
Extended outdoor loading corridor for situations with limited indoor space. Compatible with all truck heights. When paired with a door seal, provides full weather sealing and rain protection.
Shear Fork Platform
Balanced vertical lifting via scissor-and-fork mechanism. Smoothes goods between different elevations with precise positioning — from ground level to dock height and anywhere in between.
Vertical Platform
Wall-mounted lifting solution requiring minimal floor space and no foundation pit. Ideal for cold storage indoors and outdoor truck loading where pit excavation is infeasible.
Side Platform
Wall-mounted external loading platform creating a ramp channel between dock and truck. Electrically or manually adjustable for varying truck heights. No in-ground pit needed.

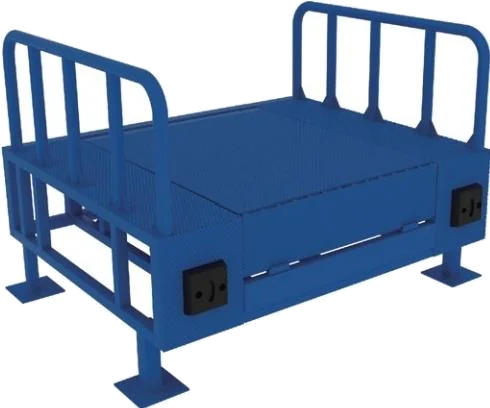

Frame Platform
Designed for situations where the height difference between indoor and outdoor is substantial and no platform pit can be reserved indoors. The frame platform extends the loading area outward with a raised structure, enabling forklift operations across large elevation gaps — from warehouse floor to truck bed.
Key Highlights
| Standard Size | Width | Length | Height |
|---|---|---|---|
| 2600×2000 | 1800+400+400mm | 2000mm | 500+750mm |
| 2800×2000 | 1800+500+500mm | 2000mm | 500+750mm |
| 3000×2000 | 1800+600+600mm | 2000mm | 500+750mm |
| 3000×2500 | 2000+500+500mm | 2500mm | 600+650mm |
| 3200×2500 | 2000+600+600mm | 2500mm | 600+650mm |
| 3600×3500 | 2000+800+800mm | 3500mm | 600+650mm |
| Dynamic Load | Static Load | Main Plate | Support | Lip Plate | Base Frame | Forklift |
|---|---|---|---|---|---|---|
| 6 Ton | 8 Ton | 6mm | Beam Channel | 12mm | Square Tube | 2.0T |
| 8 Ton | 10 Ton | 6mm | Beam Channel | 14mm | Square Tube | 3.0T |
| 10 Ton | 12 Ton | 6mm | Beam Channel | 16mm | Square Tube | 3.5T |
Loading Room
When indoor space is insufficient, the loading room extends a transition bridge corridor for outdoor loading and unloading. Combined with a platform, it accommodates both large and small truck heights. When paired with a door seal, it also provides weather sealing and rain protection — creating a complete outdoor loading station.
Key Highlights
| Standard Size | Room Width | Room Length | Room Height |
|---|---|---|---|
| W3000×2000 | 1800+600+600mm | 2200+600mm | 1250+2750mm |
| W3200×2000 | 1800+700+700mm | 2200+600mm | 1250+3000mm |
| W3400×2000 | 2000+700+700mm | 2200+600mm | 1250+3200mm |
| W3600×2500 | 2000+800+800mm | 2700+600mm | 1250+3400mm |
| W3600×3000 | 2000+800+800mm | 3200+600mm | 1250+3600mm |
| W3600×3500 | 2000+800+800mm | 3700+600mm | 1300+3000mm |
| Dynamic Load | Static Load | Main Plate | Support | Lip Plate | Base Frame | Forklift |
|---|---|---|---|---|---|---|
| 6 Ton | 8 Ton | 6mm | Beam Channel | 12mm | Square Tube | 2.0T |
| 8 Ton | 10 Ton | 6mm | Beam Channel | 14mm | Square Tube | 3.0T |
| 10 Ton | 12 Ton | 6mm | Beam Channel | 16mm | Square Tube | 3.5T |

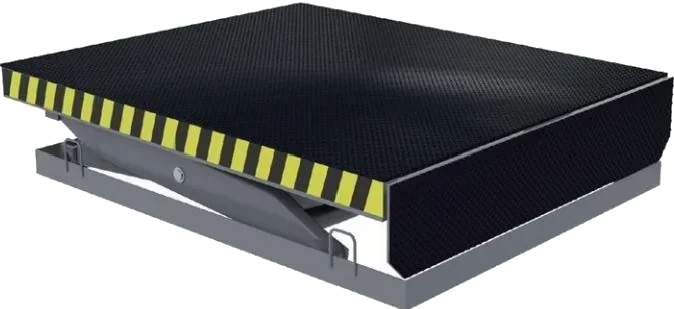

Shear Fork Hydraulic Platform
Balanced vertical lifting for special environment operations. Using the scissor-and-fork principle, the platform raises or lowers goods smoothly between different elevations. Ideal for applications requiring precise vertical positioning, from ground level to dock height and anywhere in between.
Key Highlights
| Width | Length | Height | Pit Width | Pit Length | Pit Height |
|---|---|---|---|---|---|
| 2000mm | 1600mm | 400–650mm | 2050mm | 1650mm | 420–670mm |
| 2000mm | 1800mm | 400–650mm | 2050mm | 1850mm | 420–670mm |
| 2000mm | 2000mm | 400–650mm | 2050mm | 2050mm | 420–670mm |
| 2000mm | 2500mm | 400–650mm | 2050mm | 2550mm | 420–670mm |
| 2000mm | 3000mm | 400–650mm | 2050mm | 3050mm | 420–670mm |
| 2000mm | 3500mm | 400–650mm | 2050mm | 3550mm | 420–670mm |
| Dynamic Load | Static Load | Main Plate | Support Profile | Lip Plate | Base Frame |
|---|---|---|---|---|---|
| 2 Ton | 2 Ton | 6mm | Square Tube | 8mm | Angle Steel (Manual) |
| 3 Ton | 3 Ton | 6mm | Square Tube | 10mm | Angle Steel (1.0T) |
| 6 Ton | 6 Ton | 8mm | Square Tube | 12mm | Angle Steel (2.0T) |
Vertical Platform
A compact wall-mounted lifting solution that requires minimal floor space and no foundation pit. Ideal for indoor cold storage installations and outdoor truck loading where pit excavation is not feasible. Improves door sealing effectiveness and enables smooth forklift access at raised dock heights.
Key Highlights
| Width | Length | Height | Pit Width | Pit Length | Pit Height |
|---|---|---|---|---|---|
| 2000mm | 1600mm | 400mm | 2030mm | 1600mm | 410mm |
| 2000mm | 1800mm | 400mm | 2030mm | 1800mm | 410mm |
| 2000mm | 2000mm | 400mm | 2030mm | 2000mm | 410mm |
| Dynamic Load | Main Plate | Support Profile | Lip Plate | Base Frame | Forklift |
|---|---|---|---|---|---|
| 6 Ton | 6mm | 4mm L-Steel | 12mm | Bended Workpiece | 2.0T |
| 8 Ton | 8mm | 4mm L-Steel | 14mm | Bended Workpiece | 3.0T |
| 10 Ton | 8mm | I-Beam | 16mm | Bended Workpiece | 3.5T |
Side Platform
A wall-mounted loading platform installed outside the delivery port, creating a ramp loading and unloading channel between the dock opening and the truck. Can be electrically or manually adjusted to match varying truck bed heights. Ideal where in-ground pit installation is impractical.
Key Highlights
| Standard Size | Width (total) | Length | Height |
|---|---|---|---|
| W2200×L500 | 1600+300+300mm | 500mm | 500mm |
| W2400×L500 | 1800+300+300mm | 500mm | 500mm |
| W2600×L500 | 1800+400+400mm | 500mm | 500mm |
| W2800×L500 | 1800+500+500mm | 600mm | 600mm |
| W3000×L500 | 2000+500+500mm | 600mm | 600mm |
| W3500×L500 | 2000+750+750mm | 600mm | 600mm |
| Dynamic Load | Static Load | Main Plate | Support | Lip Plate | Base Frame | Forklift |
|---|---|---|---|---|---|---|
| 2 Ton | 2 Ton | 6mm | Beam Channel | 8mm | Angle Steel | Manual |
| 3 Ton | 3 Ton | 6mm | Beam Channel | 10mm | Angle Steel | 1.0T |
| 6 Ton | 6 Ton | 8mm | Beam Channel | 12mm | Angle Steel | 2.0T |
